ACS A

For all boats

• Choose the ACS A if it is easier to connect to the trim tabs in the engine room

• Planing and semidisplacement hulls

• Shaftdrives, sterndrives, IPS and outboards

• Optional flybridge control panel available

• Typical boat length: 25 ... 50 feet



---



Controls roll and pitch

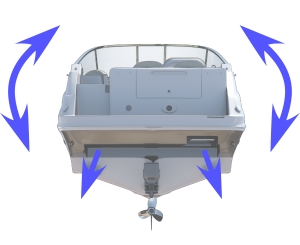

• Controls roll (Healing)

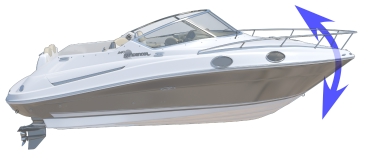

• Controls pitch (Trim angle)



---

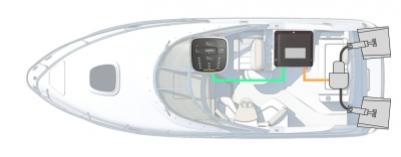

Trim tabs connected to a separate control unit

• The wires of the actuators or hydraulic pump are connected to a control unit that can be located anywhere in the boat



---

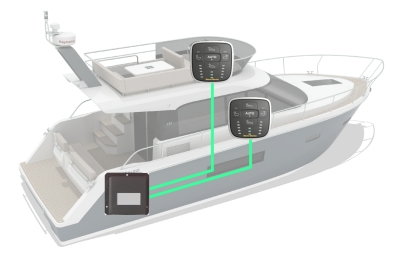

Optional flybridge control panel available

• The main panel and the flybridge control panel are connected together at the control unit



---



Compatible with all popular trim tabs

• Electromechanical trim tabs, Lectrotab, Lenco

• Hydraulic trim tabs, Bennett, Instatrim

Pictures of trim tabs



---



Tab position display

• Tab position is estimated and displayed for all kind of trim tabs





---



Turning detection

• Automatic control is suspended while turning



---



For all sea conditions

• The automatic control adapts to varying sea conditions



---



Off the plane sleep

• Auomatic control is suspended while off the plane



---

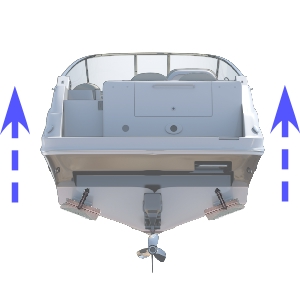

Automatic retraction

• The trim tabs are retracted to prevent marine growth



---
